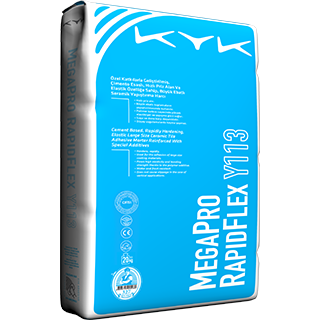

MegaPro RapidFlex Y113

• Hardens, rapidly.
• Used for the adhesion of large size coating materials.
• Poses high elasticity and adhesive strength thanks to the polymer additive.
• Resistant to temperature changes, water and frost.
• Prepared and applied easily.
• Does not cause slippage in the case of vertical applications.

Usage Areas

• MegaPro RapidFlex Y113 is used for the adhesion on such sound, dust free vertical and horizontal cement based plaster, trowel coating and prime coated concrete surfaces and dry wall systems coating materials with low water absorbance as ceramic tiles in indoors and outdoors spaces. The product is suitable for use in ceramic on ceramic applications in indoors spaces.The product is preferable especially for renovation applications, for such surfaces, which are required to be rapidly opened for pedestrian traffic and for such floors, which are intended to be exposed to busy pedestrian traffic. The product should be preferred to such environments, which are likely to be exposed to frost after the application, due to its rapid hardening nature. The product is used for the adhesion of large size floor and wall ceramic, natural rock, granite, and porcelain ceramic tiles.


  ---

  Technical Informations

  • PerformanceEarly tensile adhesion strength ≥ 0.5 N/mm² EN 12004–2:2017, 8.3
    Initial tensile adhesion strength ≥ 1 N/mm² EN 12004–2:2017, 8.3
    Tensile adhesion strength after water immersion ≥ 1 N/mm² EN 12004–2:2017, 8.3
    Tensile adhesion strength after thermal aging ≥ 1 N/mm² EN 12004–2:2017, 8.3
    Tensile adhesion strength after freezing – thawing cycle ≥ 1 N/mm² EN 12004–2:2017, 8.3
    Tensile adhesion strength after retention time (after 10 minutes) ≥ 0.5 N/mm² EN 12004–2:2017, 8.1
    Slippage ≤ 0.5 mm EN 12004–2:2017, 8.2
    Reaction to fire A1 TS EN 13501 – 1
    The foregoing values represent the results of the laboratory tests conducted at 23 ± 2°C temperature and 50% ± 5 relative humidity conditions. The values provided as per the table may vary depending on the surface and ambient conditions.

    Application LimitsUseful time for prepared mortar – Pot life: Maximum 1 hours
    Workable time: Maximum 10 minutes
    Smoothing time: 10 minutes
    Required standby time for joint application: 4 – 6 hours
    Opening the traffic: 8 hours
    The foregoing values represent the results of the laboratory tests conducted at 23 ± 2°C temperature and 50% ± 5 relative humidity conditions. The values provided as per the table may vary depending on the surface and ambient conditions.

    Technicial Specificationsa. Cement based ceramic tile adhesive mortar with highalumina cement and polymer additive
    b. Dry Density: 1.35 ± 0.05 gr/cm³
    c. Mortar Density: 1.80 ± 0.05 gr/cm³
    d. Color: Gray, white e. Temperature Resistance: -15°C to +80°C

    Mixing RatioThe product should be mixed with water, weighing equal to 22- 26 % of the product. (4,4 – 5.2 liters of water for a 20 kg package)

    ConsumptionThe amount of consumption varies according to the condition of the application surface, the application method and notch size.



    PackagingMegaPro RapidFlex Y113 is delivered in net 20 kg craft bags, which are stowed in 60 pcs. on a 80 cm x 100 cm palette (1200 kg).

    StrengthThe shelf life of the product is 12 months when stored within non tampered original packaging in dry (maximum relative humidity 60 %) and cool (ambient temperature between +5°C and +25°C) environment.

    Reference Standardsa. Certifications / Standards
    • TS EN 12004-1 2017
    b. Ministry of Public Works and Settlement Item No.
    • Ministry of Public Works and Settlement Item No.: 10.300.2204
    c. Quality Certificates
    • TS EN 12004-1 2017 / C2FTS1
    • CE

    ---

    Application Procedure

    • Application Surfaces
      Indoors and Outdoors Walls;
      Cement based plaster (MegaFilm primer applied)
      Concrete (MegaFilm A201 or MegaFilm BB A204 primer applied)
      Old ceramic tile coating (MegaFilm Visko A203 primer applied)
      Indoors and Outdoors Floors;
      Cement based trowel coating
      Concrete (MegaFilm A201 or MegaFilm BB A204 primer applied)
      Old ceramic tile coating (MegaFilm Visko A203 primer applied)

      Surface Preparation :
      • The application surface should be dry, clean, sound and dust free, and should have been cleansed of oil, dirt or any materials that may prevent adhesion, and any such materials as mortar and cement residues should be scraped from the application surface.
      • The dusty surface on the reverse side of the ceramic tile should be moisturized and cleaned.
      • The surface defects, which are deeper than 1 cm, should be repaired with MegaTamir İ T101 or MegaTamir K T102 6-8 hours in advance of the adhesive mortar application. In the cases, where structural repair mortar should be used; MegaTamir İ Yapısal T103 or MegaTamir K Yapısal T104 should be preferred.
      • Upon the completion of the surface cleaning, MegaFilm A201 primer should be applied in a single coat with a brush and be left to dry for 1 to 2 hours in order to enhance the bonding strength and stabilize the surface absorption.
      • Exposed concrete surfaces should be applied MegaFilm BB A204 exposed concrete primer in single coat and be left to dry for minimum 3 hours prior to the application of the adhesive mortar in order to enhance the adhesion strength.
      • In the case of ceramic tile coating application on old/ former ceramic tile coating, the surface should, prior to the application, be prepared by applying MegaFilm Visko A203 and to dry for minimum 3 hours.
      • In the case of wet space applications, waterproofing should be ensured with Megaİzo Lastik 10 S103 on the surface, which should have been coated with the recommended primer, prior to ceramic flooring.

      Application Methods :
      • MegaPro RapidFlex Y113 should be applied to the surface with the notched trowel determined with respect to the size of the ceramic tile and the structural condition of the surface.
      • Due care must be taken to ensure that MegaPro RapidFlex Y113 does not form a film layer on the surface during the application. In the cases of formation of film layer on the surface, the adhesive should be scraped off the surface and should never be used again.
      • The coating material should be placed on the surface and be ensured to settle thereon with a rubber tip hammer.
      • The application thickness of the product should not exceed 10 mm.
      • In the application of ceramic and coating materials, leveling should be done by using the Gauge Wedge K908 in order to easily and quickly adjust the height of the first horizontal row from the ground.
      • Tile Levelling System (STS) – K904/ K911/ K905/K906 should be used to remove the level difference in large-size ceramic applications.
      • Joint filling should be initiated minimum 4 hours after the adhesion.
      • In the case of the applications with ceramic tiles with dimensions in excess of 33×33 cm in indoors and outdoors spaces; double side adhesion should be applied.
      • Minimum 3 mm joint gaps should be left between 30×60 cm and larger coating materials (Coating area ≥1800 cm2).
      • Minimum 10 mm expansion joint gap should be left every 8 meters and filled with Megaİzo PU Mastik HM S492.
      • Recommended pin rake (notch) sizes are as follows.

      Application Recommendations :
      • The wall and floor ceramic tiles in light colors are recommended to be adhered with MegaPro RapidFlex Y113 in white color.
      • The product should, once mixed, be used before the expiration of its pot life. Any mortar, the pot life of which has expired, should not be used during the application.
      • Any such foreign substance as lime, cement or plaster should not be added to the mortar prepared.
      • Extra water should not be added to the mixture other than the specified water rate.
      • The product should not be applied on unsound surfaces. The soundness and the load bearing capacity of old surfaces should be checked prior to adhesion.
      • The surface should be preserved from air currents and water contact during and after the application.
      • Due care should be taken to ensure that the material is not exposed to direct sunlight in hot weather conditions, and the product should be mixed with cold water.
      • The product should not be applied on extremely windy weather conditions or on hot surfaces, which are exposed to direct sunlight; and in the cases, where application is imperative under such conditions, the environment and the surface should be prepared for application in advance.
      • The product should not be applied in rainy weather conditions, and the application surface should be preserved from rain for a period of 24 hours.
      • Refer to our technical support hotline for recommendation on different surface applications. (PHONE: +90 444 4 595)

      Surface and Ambient Temperature
      The surface and ambient temperature should be between +5°C and +35°C whilst at application.
