Product Number Product Name EAN BarcodeProduct Description
102158012EX

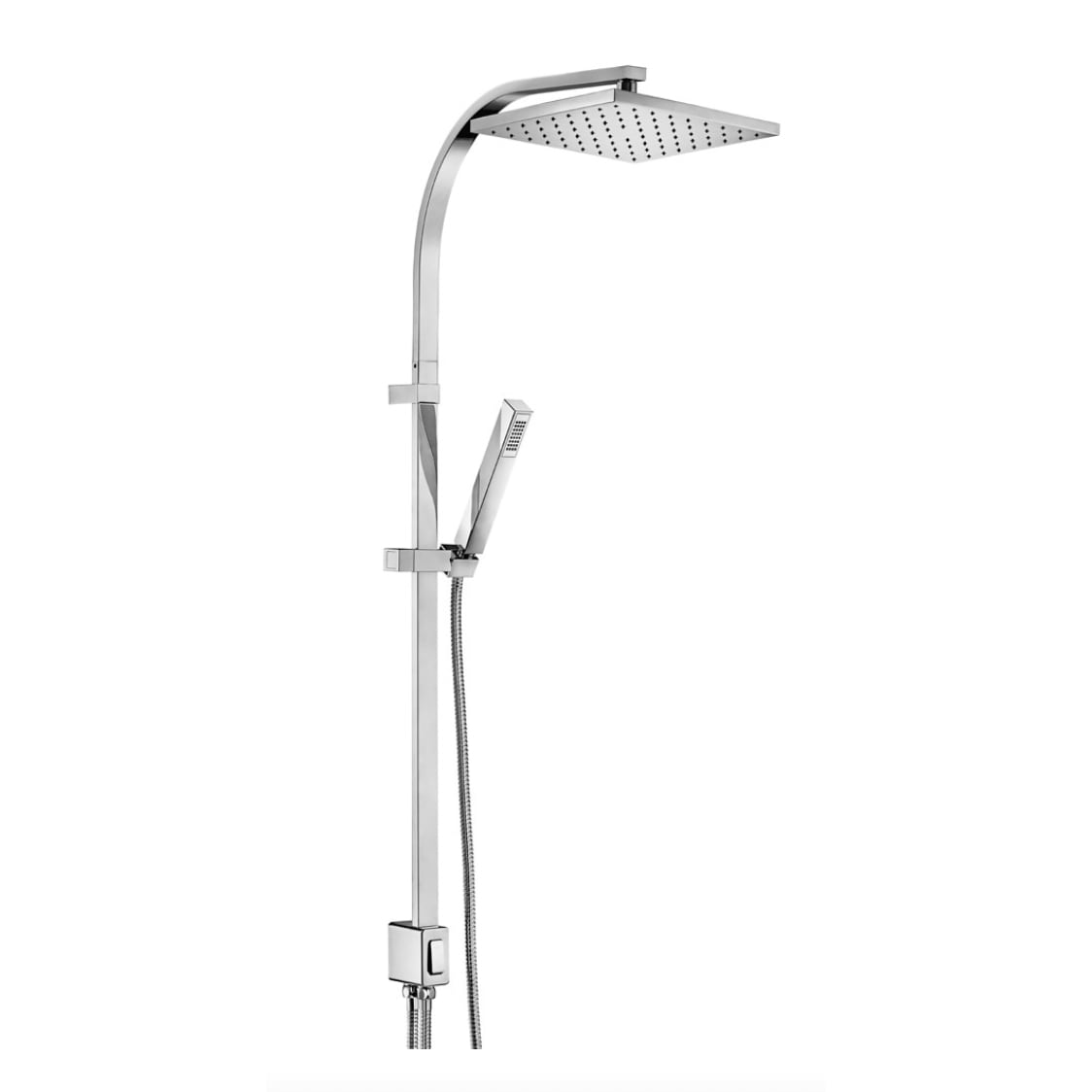

Shower Column System 8693261058365
Technical Specification
Options of Connected Mixers
Hand Shower Connection Hose
Bath or Shower Mixers
1,5 m Anti-twist Clamped Flexible Hose with G 1/2” Thread
Head Sizes
74×37 mm – Hand Shower
250×250 mm – Head-Ceiling
Positioning of Hand Shower Set
Vertically Moveable Bar
Positioning of Head Ceiling
Recommended Water Pressure
Nominal Flow Rate @3bars
Ball Joint
Flow Regime at Hand Shower Set
Single Flow Type
Min. Water Pressure
Max. Water Pressure
0,5 bar
10 bars
3 bars
11 l/m at Hand Shower
10 l/m at Head-Ceiling
Inlet Water Temperature
5 ̊C – 65 ̊C
Flow Rate Chart
Supply Connection
Finishing Body Material
102158012C1EX 102858012EX
102158012xx
800 mm G 1/2” Flexible Connection Hose
Chrome
Brass & Plastic
Color Options
Matt Black Gold Effect
Product Variants
xx Localization Product Number
